Remote Control by Example

Overview

With Dux-Soup Remote Control you can trigger automated LinkedIn actions from outside of the web browser. This means that you can e.g. trigger the sending of a connection request, including a personalised message, to a specific profile in LinkedIn from e.g. Hubspot. You can trigger this when a new lead is created and their LinkedIn profile URL is added. The Remote Control function of Dux-Soup enables you to include LinkedIn campaigns without leaving your lead management system!

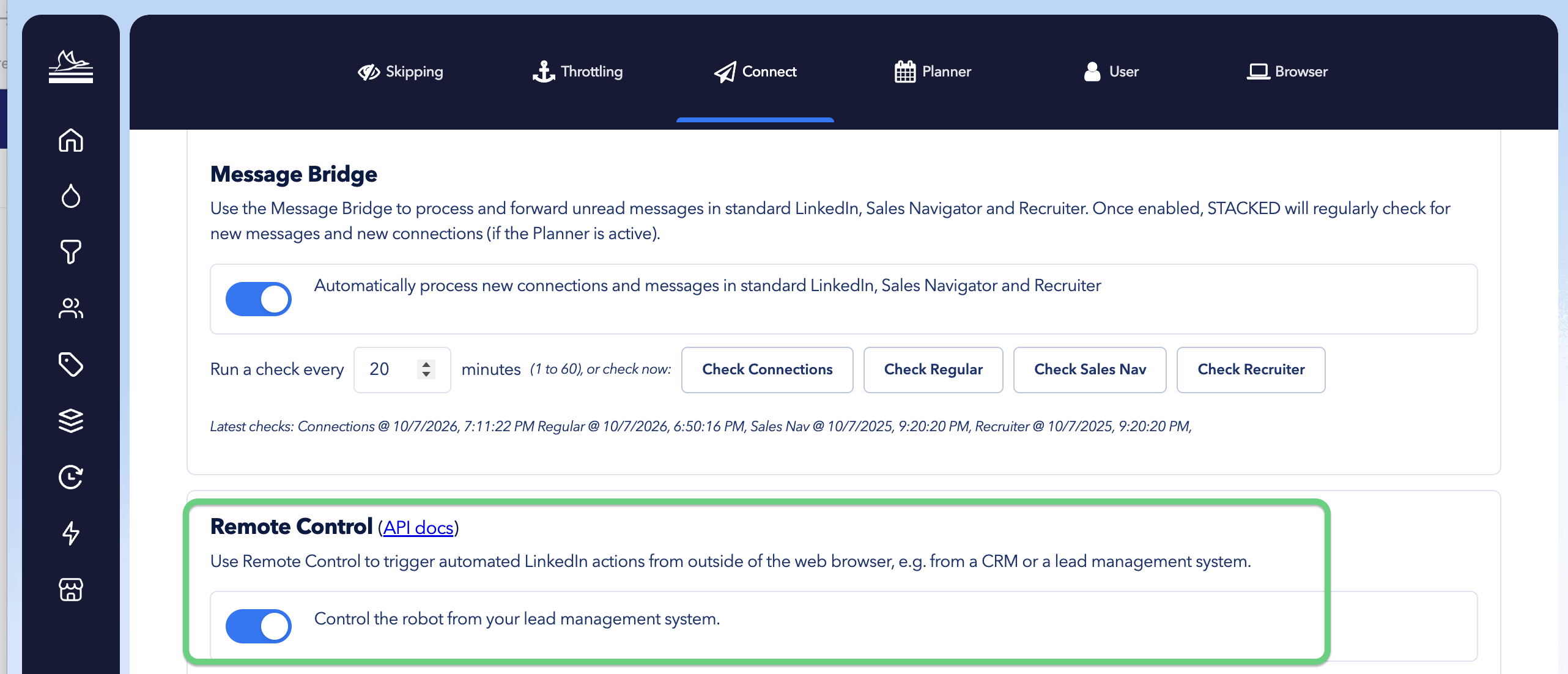

Remote Control can be enabled in Dux-Soup Options -> Connect Tab [1]. Simply toggle the switch to enable your Dux-Soup to be remotely controlled:

Connection Details

The connection details are required to connect to your Dux-Soup. They consist of 2 parts:

  1. Remote Control URL : All remote control commands that need to be received by your Dux-Soup should be sent to this address. More on sending commands later!
  2. Remote Control Authentication: All remote control commands need to be signed using this authentication key. So don’t share this key with anyone who shouldn’t be able to control your Dux-Soup. Commands that are not properly signed for the target connection are ignored.

Commands

Remote Control supports the following 5 commands: visit, connect, message, wait, reset. When these commands are sent to the Dux-Soup servers, they will wait in a queue. They will remain in the queue for up to 7 days to be picked up by the Dux-Soup extension.

Visit-Command

This command will open the target profile in a new tab on the remote. After the command has executed the remote will close the tab.

Parameter(s)

profile Target profile URL
runafter Schedule the command to run after a set time ( optional )

Connect-Command

This will open the target profile in a new tab and will attempt to send a personalised connection request. After the command has executed the remote will close the tab.

Parameter(s)

profile Target profile URL, ideally a 2nd or 3rd degree connection
messagetext Personalised message to be sent with the invite. Can contain placeholders, e.g. _FN_
runafter Schedule the command to run after a set time ( optional )

Message-Command

This will open the target profile in a new tab and will attempt to send a direct message. After the command has executed the remote will close the tab.

Parameter(s)

profile Target profile URL, must be a 1st degree connection
messagetext Personalised message to be sent with the invite. Can contain placeholders, e.g. _FN_
runafter Schedule the command to run after a set time ( optional )

Wait-Command

Tell the remote robot to wait for a number of seconds before fetching and executing the next remote control command.Parameter(s)

-

Testing Commands

Dux-Soup includes a tool that allows you to try out commands and /  or generate the corresponding ‘curl’ [2] commands to execute from any command line. To use this tool just point your browser to https://app.dux-soup.com/web/rc/test

Example with ‘curl’

Example with Request

Signing Commands

To successfully deliver a command  to the remote the request will need to include the cryptographically signed header ‘X-Dux-Signature: [SomeHash]’

The value can be calculated as follows. In this example code we use the jsSHA Javascript library [3], but any SHA library will work as long as it support SHA-1, HMAC and BASE64 encoded output:

        var shaObj = new jsSHA("SHA-1", "TEXT");
        shaObj.setHMACKey(<duxsoupapikey>, "TEXT");
        shaObj.update(<commandrequestjsonbody>);
        var hmac = shaObj.getHMAC("B64");<br>

Where hmac will contain the required value.

Required Fields

Please note that the JSON request body should contain the following fields to ensure acceptance by the remote:

command Command Identifier, e.g.. ‘connect’
targeturl The target URL of this command, where the command is delivered. Should start with https://app.dux-soup.com
timestamp Current ‘unix’ time in milliseconds.
userid The userid to which the command will be sent for execution. Should correspond to the userid in the target URL.

Zapier Action

Check this article to read how to use Zapier to send these commands.

Deployment Note

Please ensure you follow the steps in section "Disable Chrome flags" of  this article when rolling out for continued use.

[1] Remote Control is only available in Dux-Soup Turbo Edition

[2] see https://en.wikipedia.org/wiki/CURL

[3] See https://github.com/Caligatio/jsSHA
